DIMENSIONS

Body will be designed and constructed to suit to specific chassis wheel-base

Overall width of body can be constructed up to 2550mm

BEACON ARCH AND FRONT NUDGE BAR

This is mounted to front of body and enables installation of beacons, work lamps, stop/ tail/ indicator lights

Styled beacon flyer with radius corners

Mounting brackets for stop/tail/indicators

1 pair of work lamps

60” 4 rotator beacon light bar

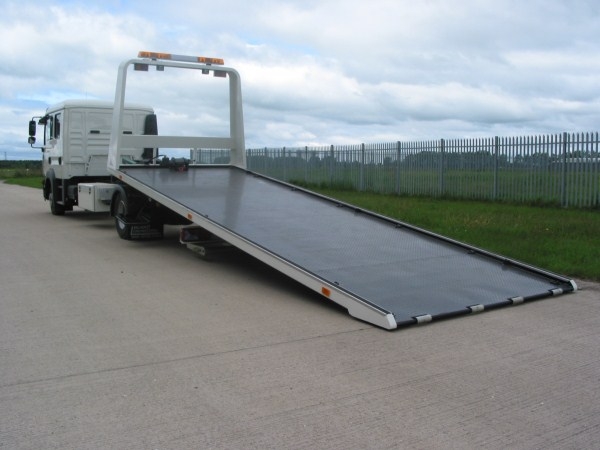

ALL STEEL BODY

With fully welded steel treadplate flooring

Twin tilt body rams

Double acting hydraulic cylinders with 70mm bores

12ft slide off ram

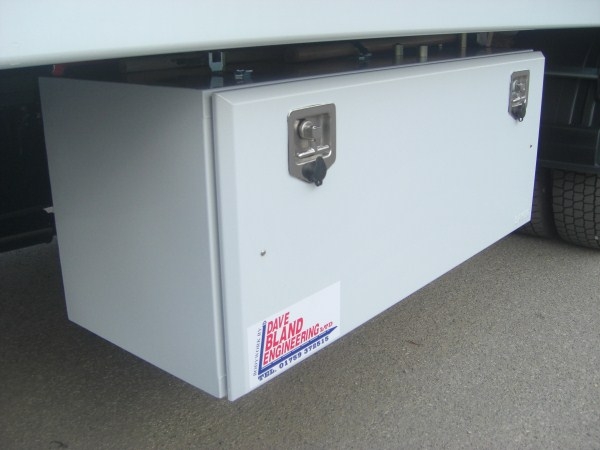

STAINLESS STEEL TOOL LOCKER

48”x20”x20” fitted to near-side of chassis (where possible)

Fitted with lockable stainless steel handle

BODY SIDE CAPPING

Stainless steel capping fitted to protect body paintwork and is finished with an anti-slip safety tape

VEHICLE SECURING

12 deck mounted lashing tie down rings

 Set of 4 deluxe transporter tie down straps with soft restraining loops

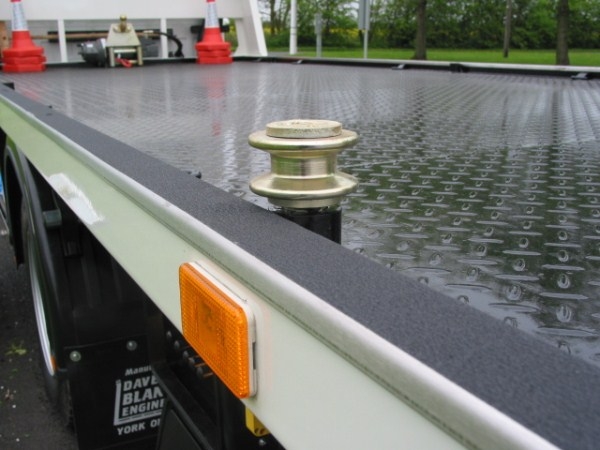

90” WINCH BOBBINS

Enables side winching for the recovery and loading of badly damaged vehicles

Spectacle Lift

2000 KG CAPACITY

Gold zinc coated spectacle lift head

Fitted with flip over head for easy stowage when not in use

Spec beam is powered in and out with a manual safety lock in the open and closed position

Twin double acting hydraulic cylinders with 70mm bores

1 pair of spectacle lift tie down ratchet straps

1 pair of wheel space reducing bars are fitted to enable the transport of vehicles with small diameter wheels

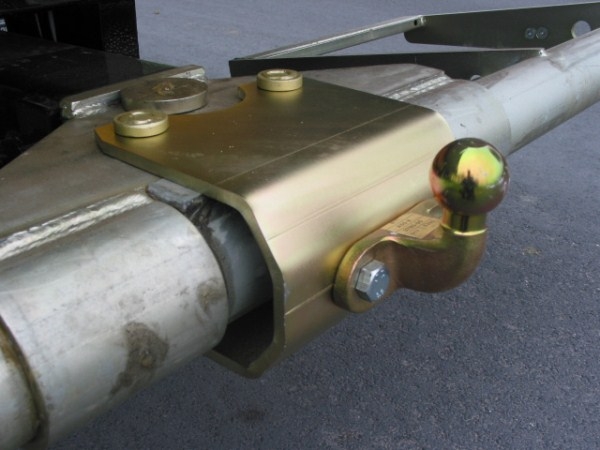

50mm tow ball

Hydraulic System

POWER TAKE OFF HYDRAULIC PUMP

Vehicle gearbox will be fitted with a hydraulic pump

Cab mounted PTO air switch with handbrake interlock

Chassis mounted hydraulic tank with in-built cartridge filter

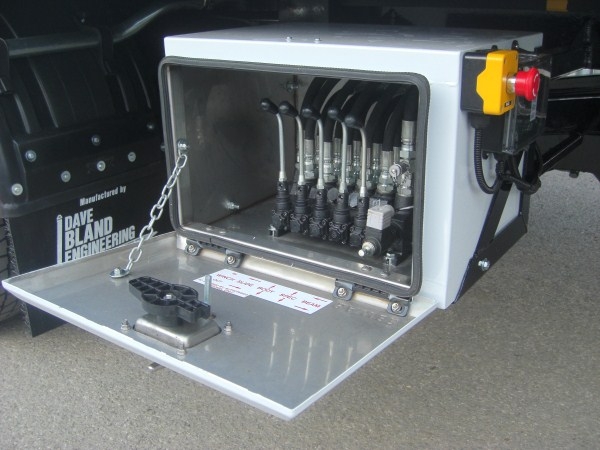

5 BANK SPOOL VALVE SET UP

Winch control with electro/air hydraulic control

Slide body on/off

Tip body up/down (inc. auto tilt)

Spectacle lift up/down

Spec beam in/out manual safety lock

Fully enclosed stainless steel spool valve cover

8000 lb HYDRAULIC WINCH

Fully compliant to new EN 14492-1 regulations

With radio remote and manual override lever

3560kg line pull- Rated line pull of 34.9kN

Single stage planetary gearing, ideally suited to slidebed and spec lift applications

Short drum and long drum options -165mm or 248mm lengths

100mm diameter drum with deep flanges. Extends rope life and assists wrapping

Heavy duty roller guide assembly with greaseways and large diameter rollers

Spring loaded clutch- easy to use

Braking system Spring applied, hydraulic release disc brake providing 100% braking

Electrical

VISION ALERT 60” LIGHT BAR

With 4 rotators

Illuminated centre

1 pair of flyer mounted work lamps and1 pair of flyer mounted stop/tail/indicator lamps

Radio remote winch control

Tow ball & 7 pin plug

24/12V dropper fitted to 7 pin plug

Finishing

Primed and painted in 2 pack

Under body wax-oiled

Please Call For More Details: 01759 372 515
