Main Design and Construction

DECKING

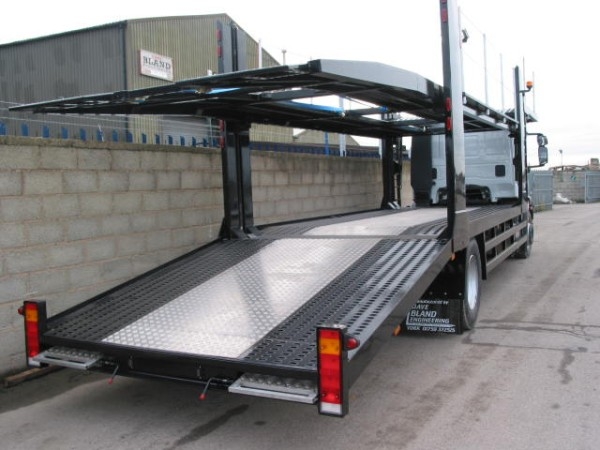

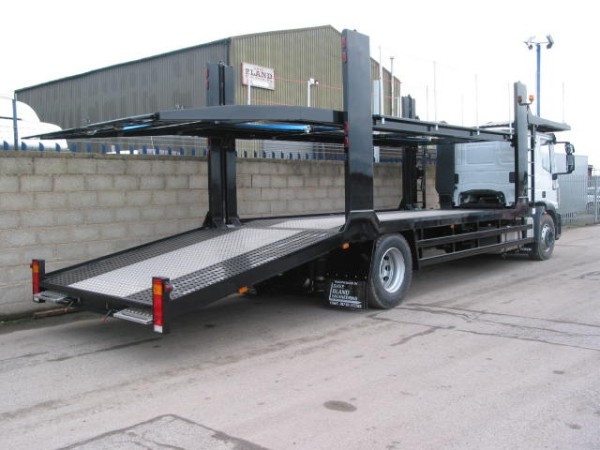

Top deck to have punched steel transporter decking

Top deck is open centred

Lower deck to have punched steel transporter decking

Lower deck to have alloy checker plate deck centre

Full width lower deck in anti-slip durbar deck sheet

4 screw lifting system using cylinder and chain

Air locks to secure deck in raised position

Decks lower fully front and rear to load high top vehicle

Section above cab tilting with air locks

Aluminium loading ramps stowed within rear valance

Top deck safety rail to both sides

Top deck access ladder to vehicles bumper

Top deck access ladders to both sides

Plastic tool locker

DIMENSIONS

Body will be designed and constructed to suit to specific chassis wheel-base

Overall width of body can be constructed up to 2550mm

HYDRAULIC SYSTEM

1 x 4 bank spool valve for body & winch operation

Spool valve hydraulic controls in fully enclosed stainless steel spool valve box

Greaser points to all pivot

Gear box pump fitted to factory fitted PTO

30 litre hydraulic tank and filter

8000lb HYDRAULIC WINCH

Fully compliant to new EN 14492-1 regulations

With radio remote and manual override lever

3560kg line pull- Rated line pull of 34.9kN

Single stage planetary gearing, ideally suited to slidebed and spec lift applications

LIGHTS

LED side marker lights

High mounted side and indicator lights to rear

High mounted load ramps

High mounted recovery beacons

FINISHING

Primed and painted in single colour

Under body wax-oiled
