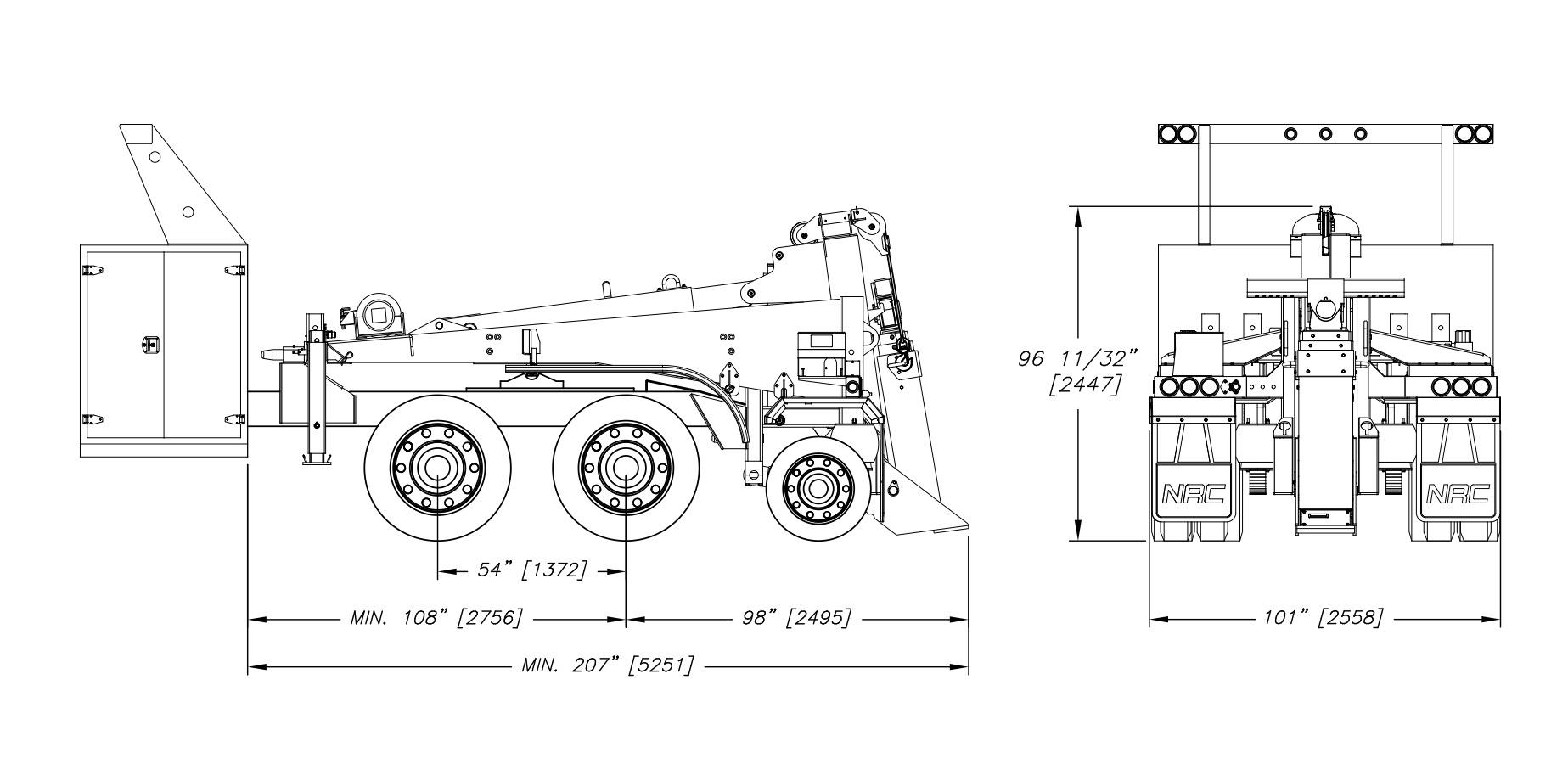

NRC QUICK SWAP WITH TAG AXLE

Standard Equipment

• Detachable from tractor in minutes
• Hydraulic underlift (stinger) extension
• Hydraulic fold
• Liftable air ride suspension
• 4 x 215/70R17.5 radial tires w/ dual steel wheels
• Front and rear receivers (permanently mounted on chassis)
• Manual controls
• Aluminum fenders
• Fork storage and holders
• Epoxy primer paint

• Single cylinders for underlift elevation
• Hydraulic actuated tilt boom
• 17,000 lbs [7,700 kg] tag axle
• Air brakes
• Load control adjustment w/ air pressure dial
• Removable front stands
• Safety chain pockets
• Tie-down chains

• BASIC FORKS - 4 SETS - ALL UNDERLIFTS
• 1 x Standard Bracket Set
• 1 x Swivel Receivers Set
• 1 x Back Axle Forks Set
• 2 x Chain forks

UNDERLIFT

• LSHDE-3-4 EURO LONG
• Reach fully retracted : 2,040 mm
• Reach fully extended : 3,648 mm
• Structural rating fully retracted : 22,680 kg
• Structural rating fully extended : 9,070 kg
